Activated carbon and TITANSORB®-P / Combined in one advanced cartridge

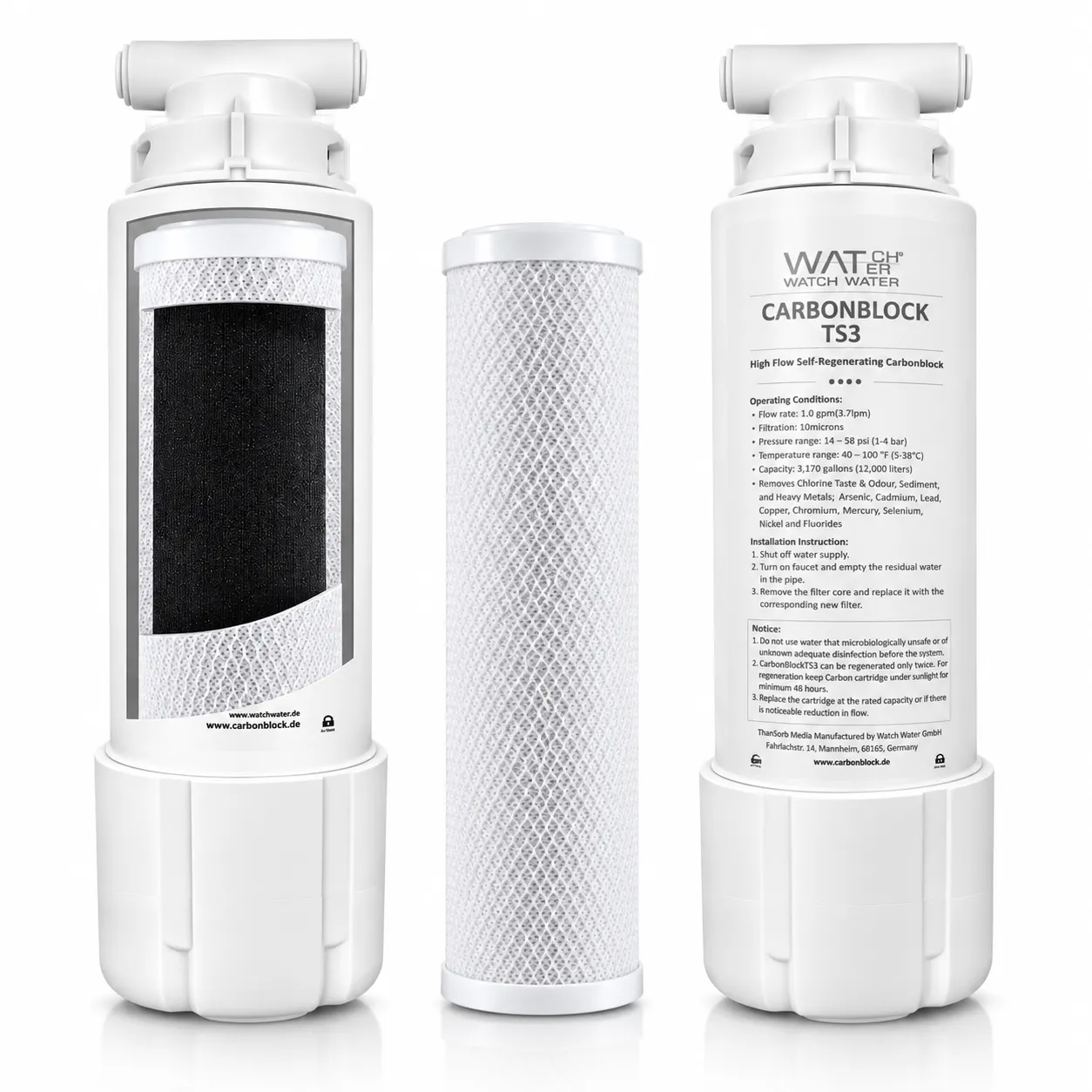

CARBONBLOCK-TS3® is a compressed activated-carbon cartridge incorporating TITANSORB®-P adsorbent for combined mechanical filtration and adsorption of selected organic and inorganic contaminants.
The compressed carbon-block structure supports sediment, chlorine, taste, odor and adsorbable-organic reduction. TITANSORB®-P introduces additional adsorption sites intended for selected dissolved metals and other target contaminants. The cartridge operates without electricity or concentrate discharge and generally retains naturally occurring mineral ions. Every contaminant claim and capacity must be confirmed through product-specific testing for the exact cartridge model and operating conditions.
Two adsorbents / One compact filtration cartridge
One cartridge.
Multiple point-of-use treatment objectives.
CARBONBLOCK-TS3® is intended for use in compatible Watch Water housings. Cartridge selection and replacement must be based on the source-water analysis, target contaminants, flow rate and certified capacity.
Point-of-Use Drinking Water
Under-sink filtration for chlorine, taste, odor, sediment and validated target contaminants.
Kitchen and Beverage Water
Compact filtration for drinking-water taps, coffee preparation and beverage equipment.
Chlorine and Organic Reduction
Adsorption of free chlorine and selected dissolved organic compounds.
Heavy-Metal Adsorption
Treatment of specifically validated dissolved metals through TITANSORB®-P adsorption.
Micropollutant Polishing
Adsorptive polishing for selected pesticides, phenolic compounds and pharmaceutical residues when test data support the application.
Industrial Polishing Applications
Final-stage treatment where low contaminant concentrations must be reached and verified through monitoring.
Four treatment functions engineered into one cartridge
Compressed Activated-Carbon Block (CARBON-COMPRESS™)
A compressed—not extruded—carbon structure provides mechanical strength, sediment filtration and a large adsorption surface for chlorine and organic compounds.
Inorganic Adsorption Support (TITANSORB-TS3™)
Immobilized TITANSORB®-P introduces additional surface sites intended to improve adsorption of selected dissolved metals and inorganic contaminants.
Integrated Particle Filtration (MICRO-BARRIER™)
The compressed carbon block mechanically intercepts sediment and particulate matter. The brochure refers to filtration down to approximately 10 microns, but the rating type must be confirmed.
Proposed Photocatalytic Regeneration (PHOTO-RENEW™)
The brochure describes external UV or sunlight exposure as a method for partially regenerating the cartridge. This should be presented only after a validated, hygienic regeneration protocol is available.

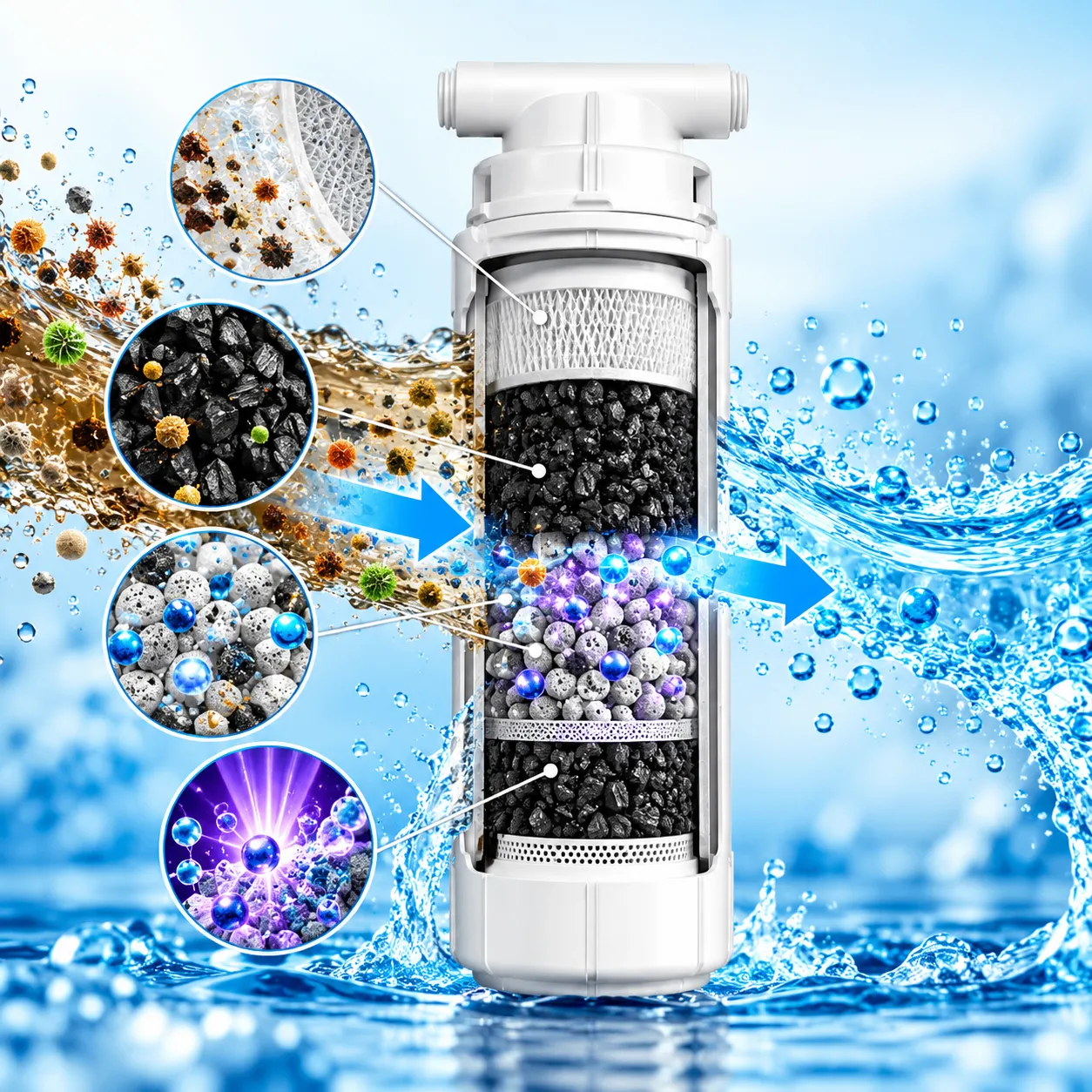

Science & Technology
CARBONBLOCK-TS3® combines physical filtration, activated-carbon adsorption, TITANSORB®-P surface adsorption and a proposed photocatalytic regeneration mechanism.
- Mechanical Particle Interception – Water passes through the compressed porous block, where particles larger than the effective pore structure are mechanically retained.
- Activated-Carbon Adsorption – Chlorine, taste- and odor-causing substances and suitable organic molecules interact with the carbon’s internal surface and pore network.
- TITANSORB®-P Adsorption – The incorporated inorganic adsorbent is intended to provide additional binding sites for selected metal ions and other target contaminants.
- Light-Activated Photocatalysis – UV irradiation of TITANSORB®-P creates electron-hole pairs and reactive oxygen species capable of degrading adsorbed organics (requires sufficient UV exposure, catalyst accessibility and validated testing).
Technical Data
Key properties, physical characteristics, and operational parameters for CARBONBLOCK-TS3®.
Published Product Information
| Property / Parameter | Brochure Information |
|---|---|
| Cartridge type | Compressed activated-carbon block |
| Added adsorbent | TITANSORB®-P |
| Primary mechanisms | Mechanical filtration and adsorption |
| Brochure-listed filtration level | Approximately 10 µm (rating type to be confirmed) |
| Installation | Compatible Watch Water housing only (Standard 10-inch housing) |
| Electrical supply during filtration | Not required |
| Concentrate wastewater | None during normal filtration |
| Mineral retention | Generally retains dissolved calcium and magnesium |
| Proposed regeneration exposure | 48 hours of sunlight or UV |
| Maximum proposed regeneration cycles | Two |
Brochure-Listed Target Contaminants
These are application targets—not verified universal removal claims. Each target requires a separate performance data sheet showing influent concentration, pH, flow, capacity and breakthrough limit.
- Chlorine and chloramine
- Taste and odor compounds
- Humic and fulvic acids
- Phenolic compounds
- Pesticides and chlorinated organics
- Dyes and color compounds
- Selected pharmaceutical residues
- Selected metals (arsenic, cadmium, chromium, copper, lead, mercury, nickel)
- Fluoride and selected radionuclides
- PFAS (including PFOA and PFOS)
Download CARBONBLOCK-TS3® documents
Explore Our CARBONBLOCK-TS3®
Poster Library
Frequently
Asked Questions
Important information about CARBONBLOCK-TS3® construction, applications, performance and replacement.
Contact SupportGet a multi-contaminant cartridge solution
It all starts with identifying your target contaminants.
Send us your water analysis, target contaminants (chlorine, organics, heavy metals, PFAS) and flow requirements. Our specialists will help evaluate CARBONBLOCK-TS3® for your point-of-use application.
