Prevent scale. Protect equipment. Prolong service life.
SCALE-TECH® is a cartridge-based scale-prevention system containing FILTERSORB® SP3 nucleation-assisted crystallization media.
Installed on a cold-water line upstream of water heaters, beverage systems, steam equipment and other water-using appliances, SCALE-TECH® helps reduce calcium-carbonate scale attachment without salt, electricity, chemical dosing or regeneration. The cartridge retains naturally occurring calcium and magnesium while SpinX® distribution technology promotes improved water contact and more uniform utilization of the FILTERSORB® SP3 media bed.
Salt-free / Mineral-preserving / Simple cartridge installation
One cartridge platform.
Multiple scale-sensitive applications.
SCALE-TECH® is installed on a cold-water supply before equipment requiring protection from calcium-carbonate scale. Model selection depends on continuous flow demand and housing size.
Water Heaters
Scale-management support for compatible storage and instantaneous water heaters.
Coffee and Beverage Equipment
Protection for coffee machines, hot-beverage stations and connected brewing equipment.
Steamers and Catering Equipment
Scale prevention for commercial steam equipment and compatible food-service appliances.
Washing Machines and Appliances
Cold-water pretreatment for scale-sensitive domestic and commercial appliances.
Showers and Salon Equipment
Scale-management support for shower fittings and salon water-heating equipment.
Commercial and Light-Industrial Systems
Parallel cartridge arrangements for applications requiring higher continuous flow.
Four scale-management functions engineered into one cartridge platform
Nucleation-Assisted Crystallization (NAC-CONTROL™)
FILTERSORB® SP3 promotes formation of microscopic calcium-carbonate crystals with a reduced tendency to attach to equipment and plumbing surfaces.
Dynamic Media Distribution (SPINX-FLOW™)
Angled openings in the bottom distributor create internal water movement intended to improve distribution across the media bed and reduce channeling.
Calcium and Magnesium Retention (MINERAL-KEEP™)
The process does not intentionally remove hardness minerals or replace them with sodium, helping maintain the water’s original mineral composition.
Scalable Cartridge Configuration (MODULAR-FLOW™)
Four cartridge sizes and parallel installation options allow the system to serve different continuous flow requirements.
SCALE-TECH® Models
Compare service flow rates, temporary peak flows, cartridge dimensions, and media volume across SL and BB series.
Model Specifications & Comparison
| Model | Continuous Service Flow | Temporary Maximum Flow | Cartridge Dimensions | FILTERSORB® SP3 Volume |
|---|---|---|---|---|
| SCALE-TECH SL 10 | 4.5 L/min / 1.2 gpm | 6.0 L/min / 1.6 gpm | 10 × 2.5 in | 250 mL |
| SCALE-TECH SL 20 | 8.5 L/min / 2.2 gpm | 11.0 L/min / 2.9 gpm | 20 × 2.5 in | 500 mL |
| SCALE-TECH BB 10 | 12 L/min / 3.2 gpm | 15 L/min / 4.0 gpm | 10 × 4.5 in | 750 mL |
| SCALE-TECH BB 20 | 16 L/min / 4.2 gpm | 21 L/min / 5.5 gpm | 20 × 4.5 in | 1,000 mL |
Additional Operational Parameters
- Media: FILTERSORB® SP3
- Distribution system: SpinX®
- Installation position: Cold-water line before protected equipment
- Chlorine tolerance: Up to 3 mg/L or ppm
- Recommended cartridge replacement: Every two years
- Utilities required: Electricity, salt/brine regeneration, and backwashing are not required. General pH/TDS reduction is not intended.

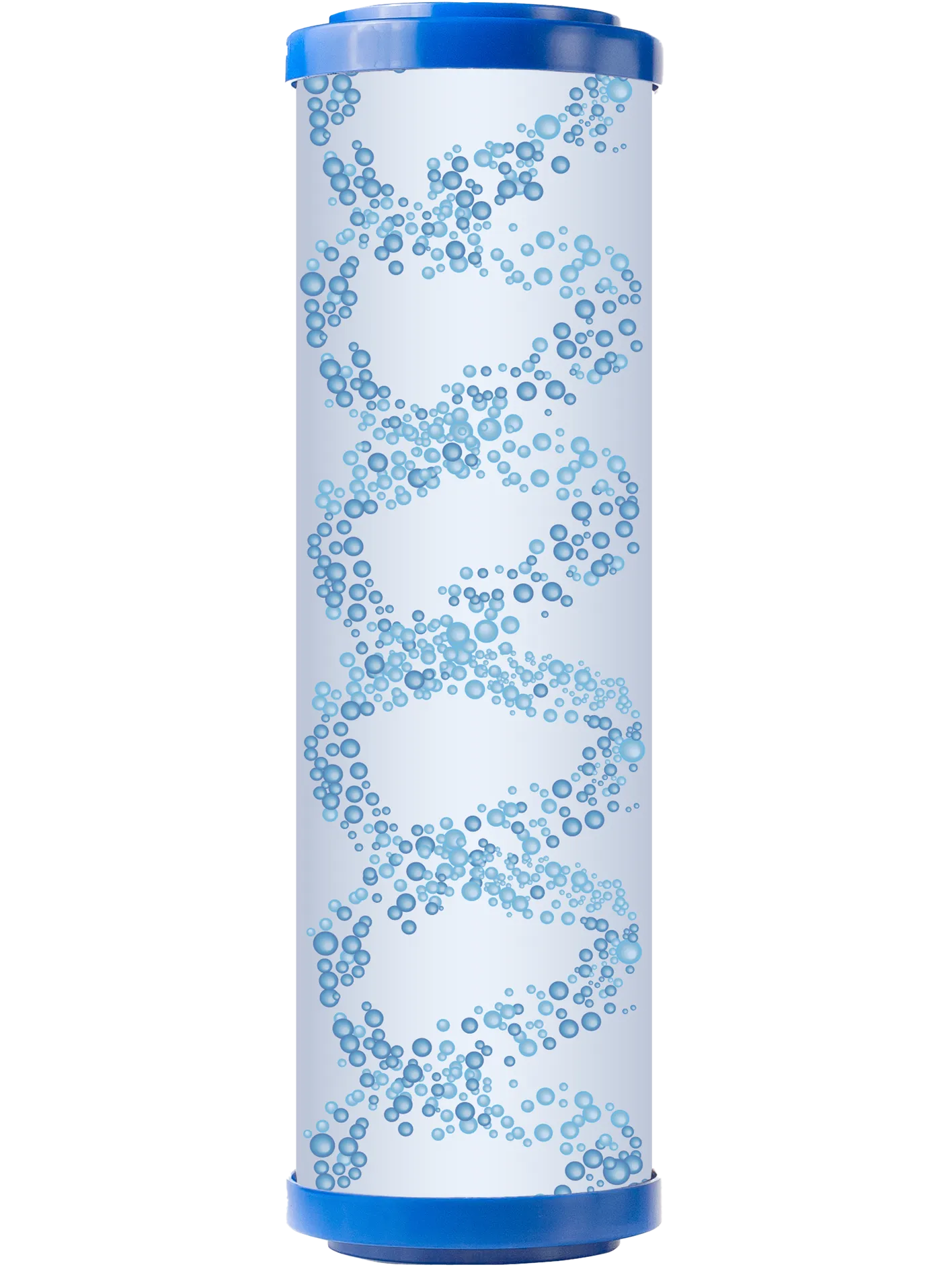

Science & Technology
SCALE-TECH® changes the crystallization behavior of temporary hardness rather than removing calcium and magnesium from the water.
- Heterogeneous Nucleation – FILTERSORB® SP3 provides active surfaces on which dissolved calcium and carbonate species can begin forming microscopic crystals.
- Reduced Surface Attachment – Once crystallization occurs in the water phase, a portion of the calcium carbonate has less tendency to crystallize directly on heating elements and equipment surfaces.
- Mineral-Preserving Treatment – Because SCALE-TECH® is not an ion-exchange softener, it does not intentionally reduce total hardness, calcium, magnesium or general TDS.
- SpinX® Distribution – Internal water movement promotes contact between the influent water and the media, supporting more uniform treatment during service.
Download Our Latest Documents
Explore Our SCALE-TECH®
Poster Library
Frequently
Asked Questions
Important information about SCALE-TECH® operation, model selection, installation and cartridge replacement.
Contact SupportSelect your SCALE-TECH® solution
It all starts with your continuous flow and water-hardness conditions.
Send us your water hardness, continuous flow requirements, application type (water heater, coffee machine, steamer) and plumbing layout. Our specialists will help evaluate SCALE-TECH® (SL 10, SL 20, BB 10, BB 20) for your installation.
