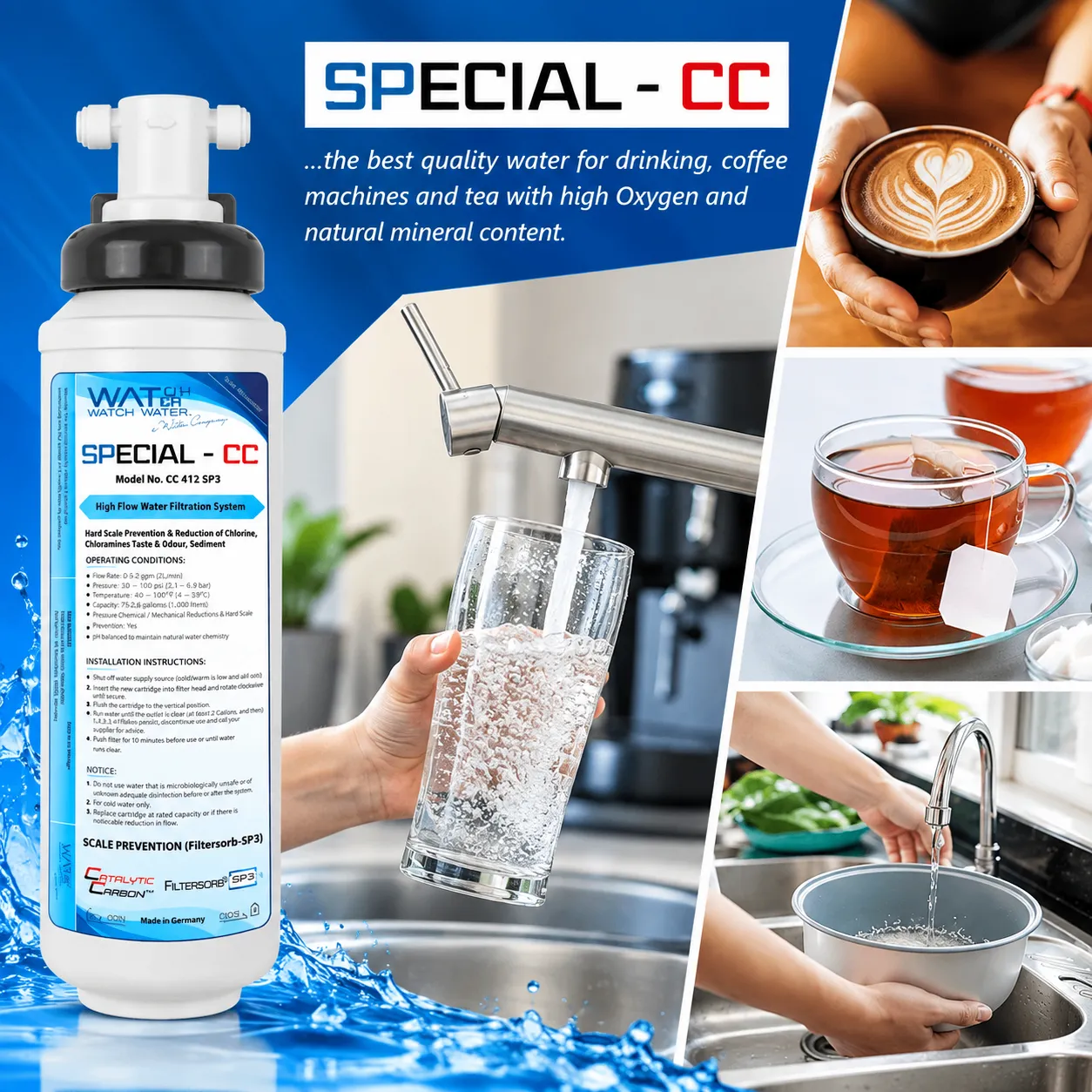

Better-tasting water and scale protection / From one compact cartridge
SPECIAL-CC® combines catalytic coconut-shell activated carbon with FILTERSORB® SP3 scale-prevention media.
The catalytic-carbon stage supports the reduction of free chlorine, chloramine, taste, odor, selected disinfection by-products and adsorbable organic compounds. FILTERSORB® SP3 uses nucleation-assisted crystallization to help reduce hard-scale attachment without adding sodium or phosphate. The system retains naturally occurring calcium and magnesium and operates without electricity, brine regeneration or backwashing. A quick-change cartridge connection and automatic water shut-off simplify point-of-use installation and maintenance.
Catalytic filtration / Mineral retention / Salt-free scale protection
One compact filter.
Multiple beverage and appliance applications.
SPECIAL-CC® is designed for cold-water point-of-use installations requiring improved taste, disinfectant reduction and scale-management support.
Coffee and Espresso Machines
Chlorine and chloramine reduction with scale protection for beverage equipment.
Water Dispensers
Compact point-of-use treatment for improved drinking-water taste and odor.
Restaurants and Cafés
Filtration for beverage preparation and compatible food-service equipment.
Water Coolers and Fridges
Treatment for connected cold-water dispensers and refrigerator systems.
Ice Machines
Scale-management and taste-improvement support for commercial ice equipment.
Offices and Drink Stations
Quick-change filtration for workplace water and beverage stations.
Four treatment functions engineered into one cartridge
Catalytic Carbon Filtration (CATALYTIC-C™)
Iron-modified coconut-shell activated carbon supports faster chloramine reduction than conventional activated carbon while also treating chlorine, taste, odor and selected organic compounds.
Nucleation-Assisted Crystallization (SCALE-GUARD SP3™)
FILTERSORB® SP3 promotes formation of microscopic calcium-carbonate crystals with a reduced tendency to attach to heating elements, pipes and equipment surfaces.
Natural Mineral Retention (MINERAL-KEEP™)
Unlike ion-exchange softening, the cartridge does not intentionally remove calcium and magnesium or replace them with sodium.
Fast, Clean Cartridge Exchange (QUICK-LOCK CC™)
The quick-change connection, automatic water shut-off and 3/8-inch push-fit connections simplify installation and cartridge replacement.

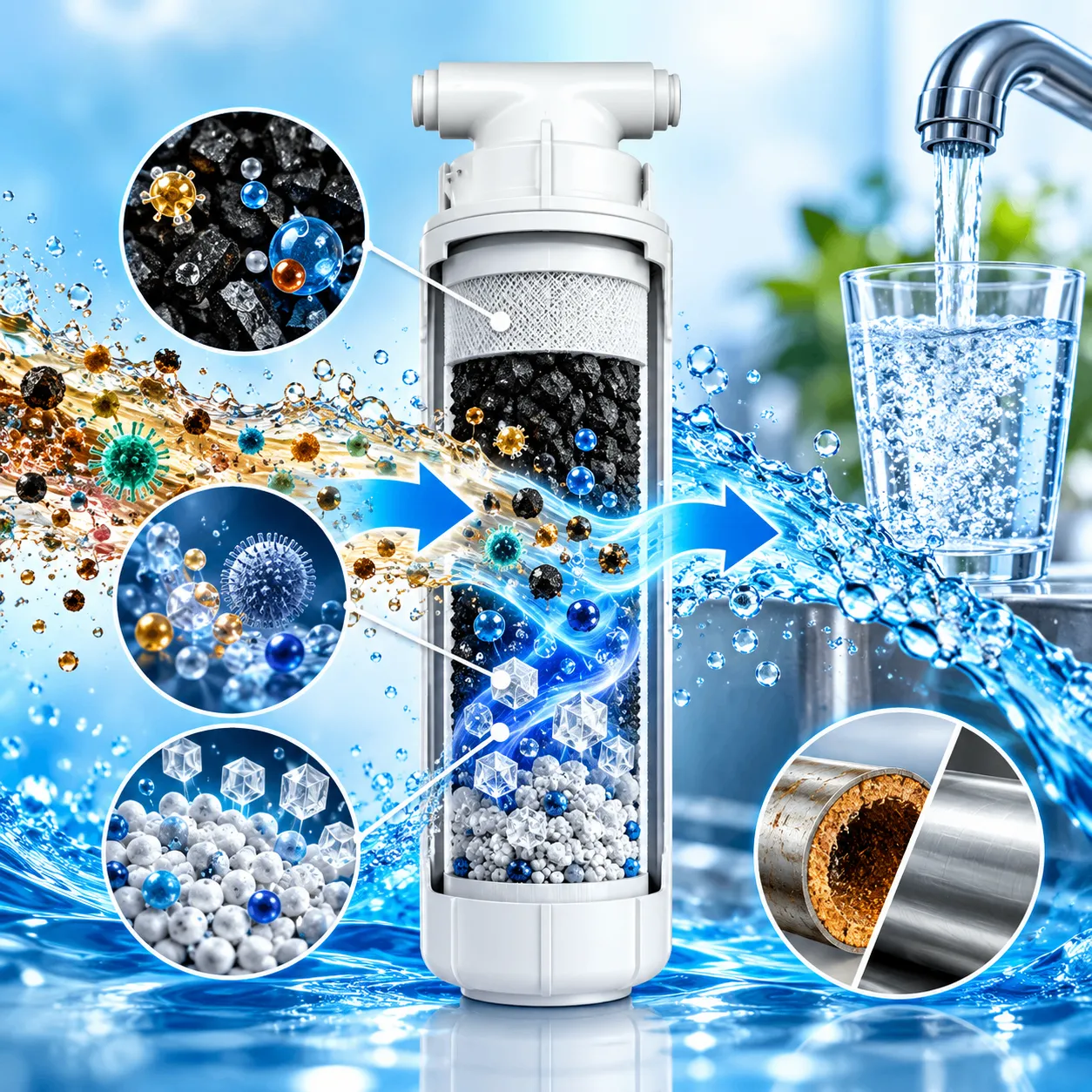

Science & Technology
SPECIAL-CC® combines two distinct treatment mechanisms: catalytic adsorption for water-quality improvement and nucleation-assisted crystallization for scale prevention.
- Catalytic Chloramine Reduction – Catalytic carbon increases the rate of reactions occurring at the carbon surface, supporting chloramine and free-chlorine reduction when adequate contact time is provided.
- Organic Adsorption – The activated carbon’s internal pore structure adsorbs suitable taste-, odor- and organic compounds (performance varies by molecular properties, concentration and contact time).
- Calcium-Carbonate Crystallization – FILTERSORB® SP3 promotes conversion of temporary hardness into microscopic crystals that remain suspended rather than readily attaching to equipment surfaces.
- Mineral-Preserving Scale Management – The process manages scale behavior without ion exchange, salt regeneration, phosphate addition or a backwash wastewater stream.
Technical Data
Key operating conditions, dimensions, and technology comparison for SPECIAL-CC® model CC 412 SP3.
Published Operating Conditions (Model CC 412 SP3)
| Parameter / Property | Brochure Specification |
|---|---|
| Model | CC 412 SP3 |
| Nominal flow rate | 2.0 L/min / 0.52 gpm |
| Pressure range | 2.1–7 bar / 30–100 psi |
| Temperature range | 4.4–37.8°C / 40–100°F |
| Published maximum capacity | 30,000 L / 7,925 gal |
| Inlet/outlet connections | 3/8-inch push-fit |
| Influent pH range | 6.5–8.5 |
| Maximum hardness | 1,338 mg/L |
| Maximum influent iron | 0.5 mg/L |
| Maximum influent manganese | 0.05 mg/L |
| Maximum free chlorine | 1.3 mg/L |
| Dimensions (Height × Width × Depth) | 410 × 105 × 105 mm |
| Packaging & Pallet quantity | 4 pieces per box / 256 pieces per pallet |
Technology Comparison
| Function | Catalytic Carbon | FILTERSORB® SP3 |
|---|---|---|
| Free-chlorine reduction | Yes | No |
| Chloramine reduction | Yes | No |
| Taste and odor improvement | Yes | No |
| Selected organic adsorption | Yes | No |
| Hard-scale prevention | No | Yes |
| Calcium and magnesium retention | Yes | Yes |
| Salt regeneration | Not required | Not required |
| Electricity | Not required | Not required |
Download SPECIAL-CC® documents
Explore Our SPECIAL-CC®
Poster Library
Frequently
Asked Questions
Important information about SPECIAL-CC® filtration, scale prevention, capacity and maintenance.
Contact SupportCalculate Your SPECIAL-CC® Lifespan
Estimate cartridge replacement intervals based on daily water consumption and the 30,000 Liter capacity rating.
Lifespan Estimation
Get a combined filtration and scale-prevention solution
It all starts with your water quality and appliance requirements.
Send us your water hardness, chlorine/chloramine levels, application type (coffee machine, water dispenser, ice maker) and flow requirements. Our specialists will help evaluate SPECIAL-CC® (Model CC 412 SP3) for your installation.
